Beautiful Loading Spinners & Progress Bars – Loading-Visualization

Category: Javascript , Loading | December 12, 2019
Views Total:8,246 views
Official Page:Go to website
Last Update:December 12, 2019


Beautiful Loading Spinners & Progress Bars – Loading-Visualization


Loading-Visualization is a JavaScript/CSS library to visualizing loading status in animated, customizable loading spinners & progress bars.

Loading indicators included:

  • Bars
  • Squares
  • Circles
  • Dots
  • Spinner
  • Dashed
  • Line
  • Bordered Line

How to use it:

Download and insert the main JavaScript & Stylesheet into the document.

<link href="dist/main.css" type="text/css" rel="stylesheet"/>
<script src="dist/main.js" type="text/javascript"></script>

Add the following CSS classes to the elements and done.

  • lv-bars
  • lv-squares
  • lv-circles
  • lv-dots
  • lv-spinner
  • lv-dashed
  • lv-line
  • lv-bordered_line
  • lv-determinate_circle
  • lv-determinate_line
  • lv-determinate_bordered_line
<div class="lv-bars"></div>

Add a custom loading label to the loading indicator using the data-label attribute.

<div class="lv-bars" data-label="Loading..."></div>

Add a percentage counter to the loading indicator using the data-percentage attribute.

<div class="lv-bars" data-label="Loading..." data-percentage="true"></div>

Specify the size of the loading indicator using the following CSS classes:

  • lg
  • md
  • sm
  • tiny
  • tiniest
<div class="lv-bars md"></div>

Set the alignment of the loading indicator using the following CSS classes:

  • lv-left
  • lv-mid
  • lv-right
<div class="lv-bars lv-mid md"></div>

Set the margin of the loading indicator using the following CSS classes:

  • lvt-{1-5}
  • lvr-{1-5}
  • lvb-{1-5}
  • lvl-{1-5}
<div class="lv-bars lv-mid md lvt-3"></div>

API methods.

// updates loading bars
lv.updateBar(type, barElement, newValue, maxValue);
// updates loading spinners
lv.updateCircle(type, circleElement, newValue, maxValue);
// resets the loading indicator
lv.reset(type, element, maxValue);
// fills the loading indicator
lv.fill(type, element, maxValue);
// adds a new loading indicator
lv.add(type, element, addValue, maxValue);

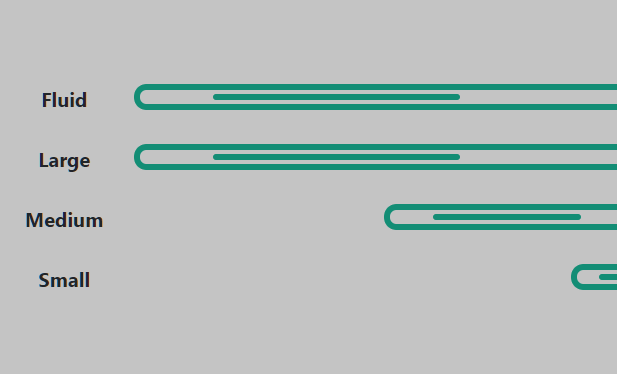

Loading-Visualization Bordered Line

Loading-Visualization Bordered Line

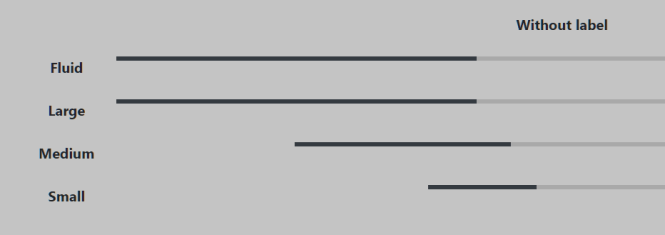

Loading-Visualization Line

Loading-Visualization Line

Loading-Visualization Dashed

Loading-Visualization Dashed

Loading-Visualization Spinners

Loading-Visualization Spinners

Loading-Visualization Dots

Loading-Visualization Dots

Loading-Visualization Circles

Loading-Visualization Circles

Loading-Visualization Squares

Loading-Visualization Squares

Loading-Visualization Bars

Loading-Visualization Bars


v1.2.13 (12/12/2019)

  • improved scaling circles in lv-circles

v1.2.12 (12/06/2019)

  • changed starting position of lv-circles

v1.2.11 (11/28/2019)

  • lv-dots are now animated with color and start with appearing and not disappearing

v1.2.10 (11/07/2019)

  • added functions to control element’s id

v1.2.9 (11/06/2019)

  • fixed blinking glitch in chrome with pulsating dots

v1.2.7 (10/24/2019)

  • separating colordefinition from other styles

v1.2.6 (10/23/2019)

  • added tiniest size option to circular elements

v1.2.5 (10/16/2019)

  • creating html element is not necessary to be done separately; added addClass and removeClass functions to ElementBase

v1.2.1 (10/04/2019)

  • fixed small gap in determinate bordered lines edges

v1.2.0 (10/03/2019)

  • added forgotten set function

v1.1.0 (09/26/2019)

  • added function to stop mutation observer

v1.1.0 (09/25/2019)

  • added percentage control
