Create A Stopwatch Using Radios and Pure CSS / CSS3

Category: CSS & CSS3 , Date & Time | May 7, 2015
Author: Effendi
Views Total: 1,981
Official Page: Go to website
Last Update: May 7, 2015
License: MIT

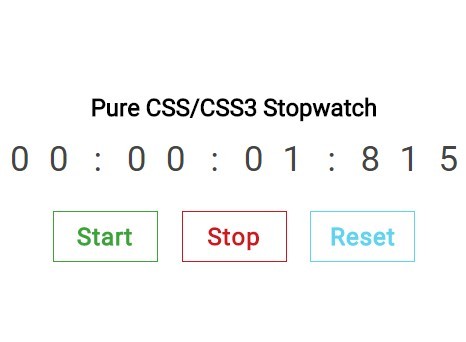

Preview:

Create A Stopwatch Using Radios and Pure CSS / CSS3

Description:

A simple stopwatch with start, stop and reset controls built using radio inputs and CSS3 animations.

How to use it:

Build the html structure for the stopwatch.

<div class="stopwatch">
  <div class="cell">
    <span class="num ten ten_hour">0 1 2 3 4 5 6 7 8 9</span>
  </div>
  <div class="cell">
    <span class="num ten hour">0 1 2 3 4 5 6 7 8 9</span>
  </div>
  <div class="cell">
    <span class="num">:</span>
  </div>
  <div class="cell">
    <span class="num sex ten_minu">0 1 2 3 4 5</span>
  </div>
  <div class="cell">
    <span class="num ten minu">0 1 2 3 4 5 6 7 8 9</span>
  </div>
  <div class="cell">
    <span class="num">:</span>
  </div>
  <div class="cell">
    <span class="num sex ten_sec">0 1 2 3 4 5</span>
  </div>
  <div class="cell">
    <span class="num ten sec">0 1 2 3 4 5 6 7 8 9</span>
  </div>
  <div class="cell">
    <span class="num">:</span>
  </div>
  <div class="cell">
    <span class="num ten hund_mill">0 1 2 3 4 5 6 7 8 9</span>
  </div>
  <div class="cell">
    <span class="num ten ten_mill">0 1 2 3 4 5 6 7 8 9</span>
  </div>
  <div class="cell">
    <span class="num ten mill">0 1 2 3 4 5 6 7 8 9</span>
  </div>
</div>

Add controls to the stopwatch using radio inputs and labels.

<input type="radio" name="controls" id="start">
<input type="radio" name="controls" id="stop">
<input type="radio" name="controls" id="reset">
<div class="control">
  <label for="start">Start</label>
  <label for="stop">Stop</label>
  <label for="reset">Reset</label>
</div>

Basic CSS styles for the stopwatch.

input[type="radio"] { display: none; }

.stopwatch { text-align: center; }

.stopwatch .cell {
  width: 35px;
  height: 35px;
  text-align: center;
  overflow: hidden;
  display: inline-block;
}

.stopwatch .cell .num {
  font-size: 35px;
  line-height: 35px;
  color: #444;
  display: block;
  -webkit-animation-play-state: paused;
  -moz-animation-play-state: paused;
  -o-animation-play-state: paused;
  animation-play-state: paused;
}

.control {
  text-align: center;
  margin-top: 30px;
}

.control label {
  border: 1px solid;
  font-size: 24px;
  font-weight: 600;
  padding: 10px;
  margin: 0 10px;
  display: inline-block;
  cursor: pointer;
  width: 83px;
  letter-spacing: 1px;
  transition: all 1s ease-in-out;
}

.control label[for="start"] { color: #3DA23A; }

.control label[for="stop"] { color: #CC181E; }

.control label[for="reset"] { color: #5FD3F0; }

CSS/CSS3 for the number animations.

.ten {
  -webkit-animation-name: ten;
  -moz-animation-name: ten;
  -o-animation-name: ten;
  animation-name: ten;
  -webkit-animation-timing-function: steps(10);
  -moz-animation-timing-function: steps(10);
  -o-animation-timing-function: steps(10);
  animation-timing-function: steps(10);
  -webkit-animation-iteration-count: infinite;
  -moz-animation-iteration-count: infinite;
  -o-animation-iteration-count: infinite;
  animation-iteration-count: infinite;
}

@-webkit-keyframes
ten {  0% {
margin-top: 0;
}

100% {
margin-top: -350px;
}
}

@-moz-keyframes
ten {  0% {
margin-top: 0;
}

100% {
margin-top: -350px;
}
}

@-o-keyframes
ten {  0% {
margin-top: 0;
}

100% {
margin-top: -350px;
}
}

@keyframes
ten {  0% {
margin-top: 0;
}

100% {
margin-top: -350px;
}
}

.sex {
  -webkit-animation-name: sex;
  -moz-animation-name: sex;
  -o-animation-name: sex;
  animation-name: sex;
  -webkit-animation-timing-function: steps(6);
  -moz-animation-timing-function: steps(6);
  -o-animation-timing-function: steps(6);
  animation-timing-function: steps(6);
  -webkit-animation-iteration-count: infinite;
  -moz-animation-iteration-count: infinite;
  -o-animation-iteration-count: infinite;
  animation-iteration-count: infinite;
}

@-webkit-keyframes
sex {  0% {
margin-top: 0;
}

100% {
margin-top: -210px;
}
}

@-moz-keyframes
sex {  0% {
margin-top: 0;
}

100% {
margin-top: -210px;
}
}

@-o-keyframes
sex {  0% {
margin-top: 0;
}

100% {
margin-top: -210px;
}
}

@keyframes
sex {  0% {
margin-top: 0;
}

100% {
margin-top: -210px;
}
}

.mill {
  -webkit-animation-duration: 0.01s;
  -moz-animation-duration: 0.01s;
  -o-animation-duration: 0.01s;
  animation-duration: 0.01s;
}

.ten_mill {
  -webkit-animation-duration: 0.1s;
  -moz-animation-duration: 0.1s;
  -o-animation-duration: 0.1s;
  animation-duration: 0.1s;
}

.hund_mill {
  -webkit-animation-duration: 1s;
  -moz-animation-duration: 1s;
  -o-animation-duration: 1s;
  animation-duration: 1s;
}

.sec {
  -webkit-animation-duration: 10s;
  -moz-animation-duration: 10s;
  -o-animation-duration: 10s;
  animation-duration: 10s;
}

.ten_sec {
  -webkit-animation-duration: 60s;
  -moz-animation-duration: 60s;
  -o-animation-duration: 60s;
  animation-duration: 60s;
}

.minu {
  -webkit-animation-duration: 600s;
  -moz-animation-duration: 600s;
  -o-animation-duration: 600s;
  animation-duration: 600s;
}

.ten_minu {
  -webkit-animation-duration: 3600s;
  -moz-animation-duration: 3600s;
  -o-animation-duration: 3600s;
  animation-duration: 3600s;
}

.hour {
  -webkit-animation-duration: 36000s;
  -moz-animation-duration: 36000s;
  -o-animation-duration: 36000s;
  animation-duration: 36000s;
}

.ten_hour {
  -webkit-animation-duration: 360000;
  -moz-animation-duration: 360000;
  -o-animation-duration: 360000;
  animation-duration: 360000;
}

CSS/CSS3 styles for the controls.

#start:checked~.stopwatch .num {
  -webkit-animation-play-state: running;
  -moz-animation-play-state: running;
  -o-animation-play-state: running;
  animation-play-state: running;
}

#stop:checked~.stopwatch .num {
  -webkit-animation-play-state: paused;
  -moz-animation-play-state: paused;
  -o-animation-play-state: paused;
  animation-play-state: paused;
}

#reset:checked~.stopwatch .num {
  -webkit-animatione: none;
  -moz-animation: none;
  -o-animation: none;
  animation: none;
}
