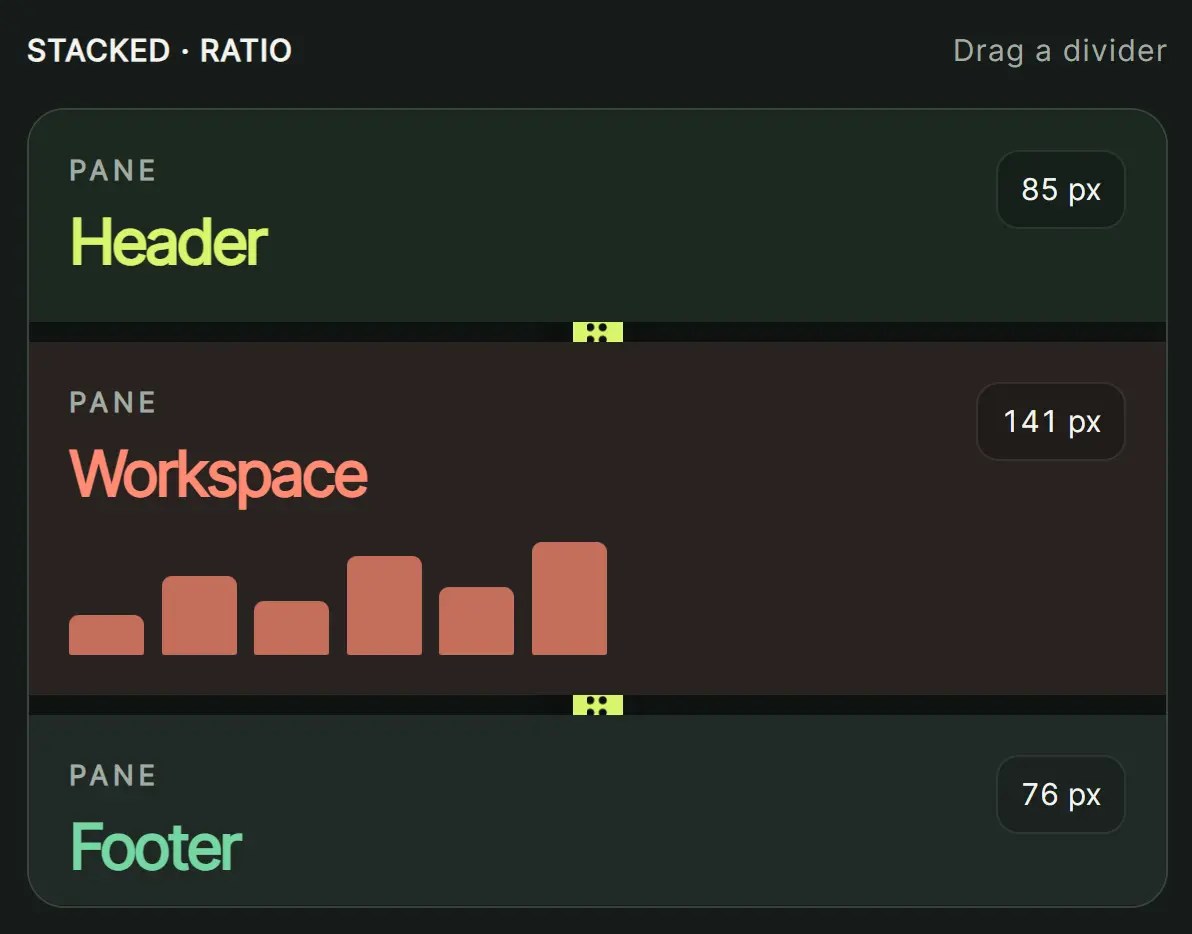

Resizable Split Layouts in JavaScript - resizable-panes-js

Authorvimalsharmazones

Last UpdateSeptember 30, 2026

LicenseMIT

Features

Horizontal and vertical split layouts.
Ratio and pixel sizing modes.
Mouse and touch resizing.
Per-pane minimum and maximum size limits.
Custom normal and active resizer classes.
Configurable resizer size and pointer detection radius.
Programmatic pane sizing and visibility control.
Nested resizable pane groups.
Persistent pane sizes and visibility through a storage API.
Resize, visibility, and size-limit callbacks.

How To Use It

Installation

Install the package from npm or Yarn.

npm install resizable-panes-js
yarn add resizable-panes-js

Basic Usage

Each pane needs a unique ID. Place a resizer after every pane except the last one. The resizer ID uses resizer- followed by the ID of the preceding pane.

This example uses ratio values for the initial layout and pixel values for the pane limits. The ratio values 2, 5, and 3 define the relative share of the available space.

<div id="workspace">
  <aside id="navigation" class="pane">
    Navigation
  </aside>
  <div id="resizer-navigation"></div>
  <main id="editor" class="pane">
    Editor
  </main>
  <div id="resizer-editor"></div>
  <aside id="preview" class="pane">
    Preview
  </aside>
</div>

#workspace {
  display: flex;
  width: 100%;
  height: 320px;
}
.pane {
  flex-shrink: 0;
  overflow: hidden;
}
.resize-handle {
  box-sizing: border-box;
  flex-shrink: 0;
  background: #cbd5e1;
  cursor: col-resize;
}
.resize-handle-active {
  background: #64748b;
}

import resizablePanes from "resizable-panes-js";
const [layoutApi, refreshLayout, clearLayout] = resizablePanes({
  uniqueId: "workspace",
  vertical: true,
  unit: "ratio",
  minMaxUnit: "pixel",
  resizerSize: 6,
  resizerClass: "resize-handle",
  activeResizerClass: "resize-handle-active",
  panes: [
    {
      id: "navigation",
      size: 2,
      minSize: 160,
      maxSize: 320
    },
    {
      id: "editor",
      size: 5,
      minSize: 280
    },
    {
      id: "preview",
      size: 3,
      minSize: 180,
      maxSize: 420
    }
  ]
});

Configuration Options

uniqueId (string, required): ID of the resizable container.
vertical (boolean, default false): Set to true for side-by-side panes that resize by width. The default creates stacked panes that resize by height.
unit ('ratio' | 'pixel', default 'ratio'): Defines how pane size values are interpreted. Ratio values act as relative weights across the visible panes.
minMaxUnit ('ratio' | 'pixel', default matches unit): Defines the unit used by minSize and maxSize. Set it to 'pixel' when ratio-sized panes need fixed pixel limits.
detectionRadius (number, default 6): Extends the pointer detection region around each resizer.
visibility (Object, default {}): Initial boolean visibility map keyed by pane ID.
storageApi (Object): Storage object used to persist pane data. localStorage, sessionStorage, or another object with a compatible storage API can be used.
resizerClass (string): Class or space-delimited classes applied to resizers in their normal state.
activeResizerClass (string): Class or classes applied while a resizer is active.
resizerSize (number, default 2): Default resizer size in pixels.
onResize (function): Receives the pane size map during resizing.
onResizeStop (function): Receives the pane size map after resizing stops.
onChangeVisibility (function): Receives the visibility map after pane visibility changes.
onMinSize (function): Runs when a pane reaches its minimum size.
onMaxSize (function): Runs when a pane reaches its maximum size.
onNormalSize (function): Runs when a pane returns to its normal size range.
panes (IPane[], required): Array containing the pane definitions.

Pane Options

id (string, required): ID of the pane DOM element.
size (number, required): Initial pane size or ratio weight, according to unit.
maxSize (number, default Infinity): Maximum pane size.
minSize (number, default 0): Minimum pane size.
detectionRadius (number, default 6): Detection radius for the resizer attached to this pane.
resizerSize (number): Resizer size override for this pane.
resizerClass (string): Normal-state class override for this pane’s resizer.
activeResizerClass (string): Active-state class override for this pane’s resizer.
onMinSize (function): Runs when this pane reaches its minimum size.
onMaxSize (function): Runs when this pane reaches its maximum size.
onNormalSize (function): Runs when this pane returns to its normal size range.

Persist Pane Sizes And Visibility

Pass a storage object through storageApi when the browser should retain pane sizes and visibility.

resizablePanes({
  uniqueId: "workspace",
  vertical: true,
  unit: "ratio",
  storageApi: localStorage,
  panes: [
    { id: "navigation", size: 2 },
    { id: "editor", size: 5 },
    { id: "preview", size: 3 }
  ]
});

Returned API And Lifecycle Functions

resizablePanes() returns the API object followed by two listener-management functions.

const [
  resizableApi,
  refreshResizable,
  clearResizable
] = resizablePanes(config);

The package exports RATIO, TOP_FIRST, and BUTTOM_FIRST for the optional resize behavior parameter.

import resizablePanes, {
  RATIO,
  TOP_FIRST,
  BUTTOM_FIRST
} from "resizable-panes-js";

API Methods

restore()

Restores the initial layout state.

resizableApi.restore();

setSize(paneId, size, behavior?)

Sets a pane size while respecting its size limits and the constraints of the other panes.

resizableApi.setSize("editor", 420);
resizableApi.setSize(
  "editor",
  420,
  TOP_FIRST
);

setSizeRatio(paneId, ratio, behavior?)

Sets the pane to a ratio from 0 to 1. A ratio of 1 corresponds to the total size of the visible panes.

resizableApi.setSizeRatio("preview", 0.3);

setVisibilities(map)

Changes pane visibility from a boolean map keyed by pane ID.

resizableApi.setVisibilities({
  navigation: true,
  editor: true,
  preview: false
});

getSizes()

Returns the current pane sizes keyed by pane ID.

const sizes = resizableApi.getSizes();

getVisibilities()

Returns the current boolean visibility map.

const visibility = resizableApi.getVisibilities();

getState()

Returns the current state of each pane, including its size, visibility, default minimum size, and default maximum size.

const state = resizableApi.getState();

Lifecycle Functions

Call refreshResizable() after application code replaces or restructures the pane DOM and the resizer detection listeners need to be attached again.

refreshResizable();

Call clearResizable() when the layout is removed and its registered resize listeners should be cleared.

clearResizable();

Callbacks

Callbacks can be defined for live resizing, completed resizing, visibility changes, and transitions into minimum, maximum, or normal size states.

resizablePanes({
  uniqueId: "workspace",
  vertical: true,
  unit: "ratio",
  onResize(sizes) {
    console.log("Current sizes:", sizes);
  },
  onResizeStop(sizes) {
    console.log("Final sizes:", sizes);
  },
  onChangeVisibility(visibility) {
    console.log("Visibility:", visibility);
  },
  onMinSize(id, size) {
    console.log(id, "reached its minimum size:", size);
  },
  onMaxSize(id, size) {
    console.log(id, "reached its maximum size:", size);
  },
  onNormalSize(id) {
    console.log(id, "returned to its normal size range");
  },
  panes: [
    { id: "navigation", size: 2 },
    { id: "editor", size: 5 },
    { id: "preview", size: 3 }
  ]
});

Nested Resizable Panes

Give each nested container and pane its own ID. Initialize the parent and child layouts independently.

<div id="outer-layout">
  <div id="sidebar" class="pane">
    <div id="inner-layout">
      <div id="top-panel" class="pane">Top</div>
      <div id="resizer-top-panel"></div>
      <div id="bottom-panel" class="pane">Bottom</div>
    </div>
  </div>
  <div id="resizer-sidebar"></div>
  <div id="main-panel" class="pane">
    Main
  </div>
</div>

resizablePanes({
  uniqueId: "outer-layout",
  vertical: true,
  unit: "ratio",
  panes: [
    { id: "sidebar", size: 3 },
    { id: "main-panel", size: 7 }
  ]
});
resizablePanes({
  uniqueId: "inner-layout",
  vertical: false,
  unit: "ratio",
  panes: [
    { id: "top-panel", size: 1 },
    { id: "bottom-panel", size: 1 }
  ]
});
